Aluminium Wall-Mounted Receiver Gate Post – Garden & Pedestrian Gate (Single Post)

This single aluminium receiver post is designed for the latch/lock side of our Garden & Pedestrian Gates when there is no suitable wall for the gate to close against. It provides a strong, stable point for the lock keep or latch to engage, helping to keep your gate secure and correctly aligned over time.

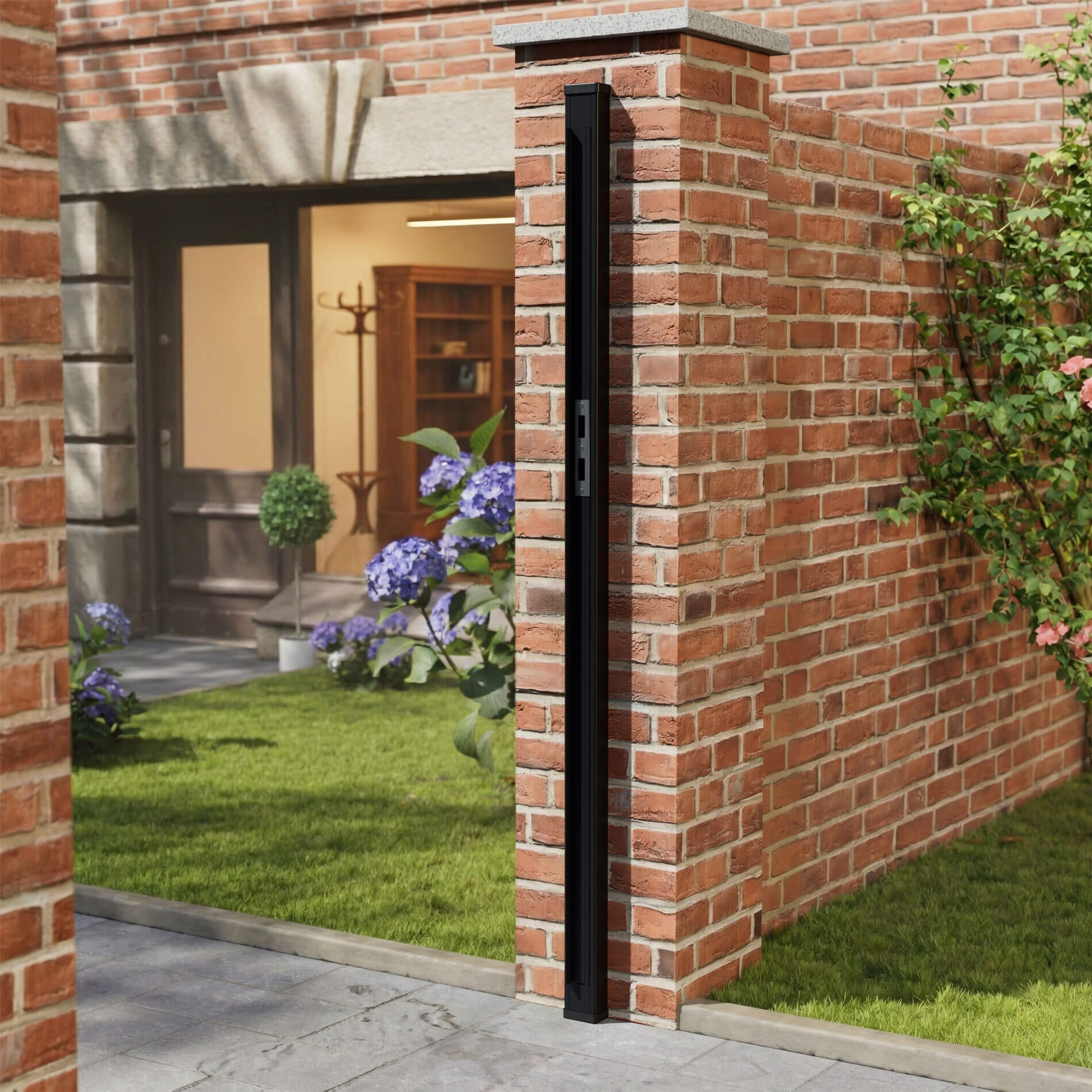

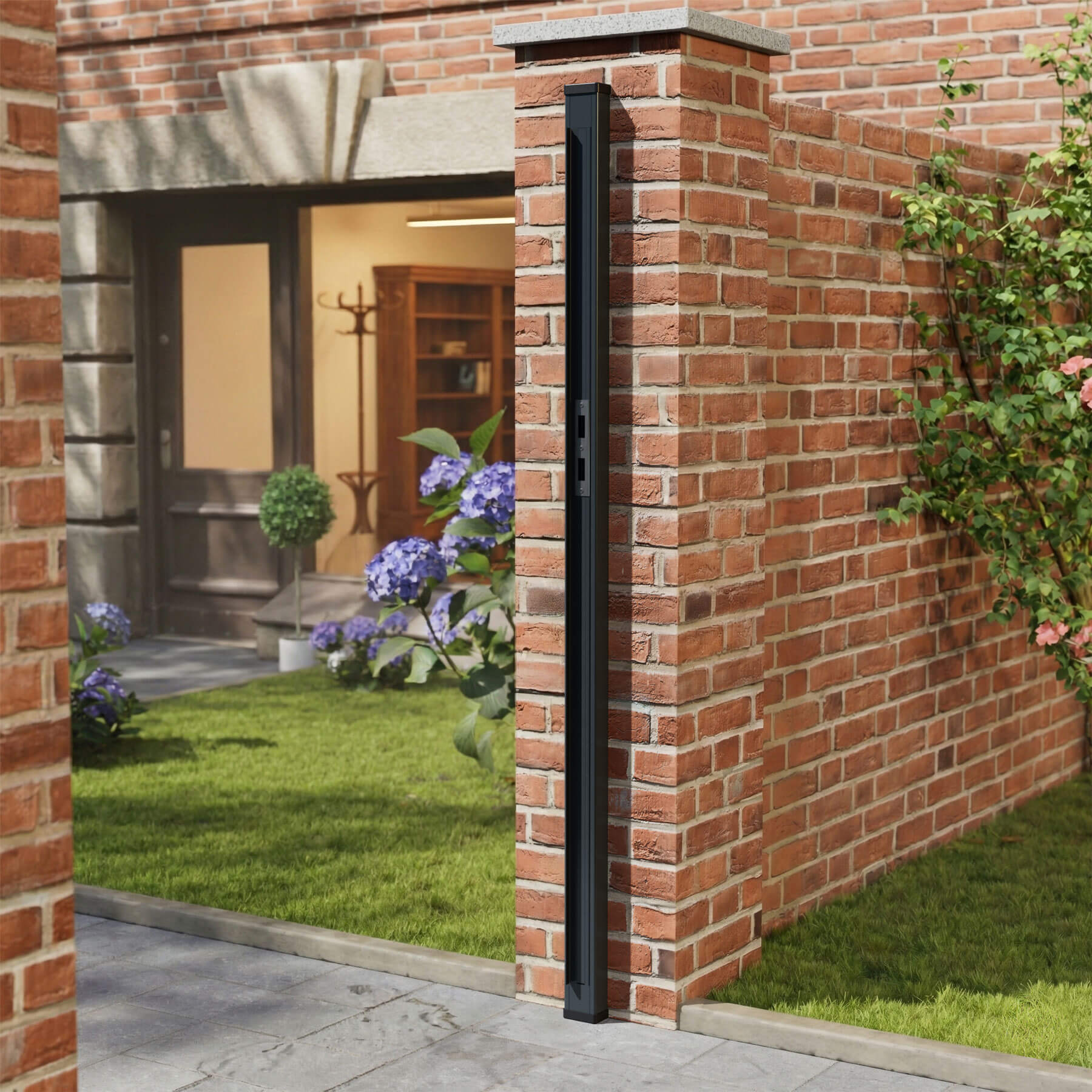

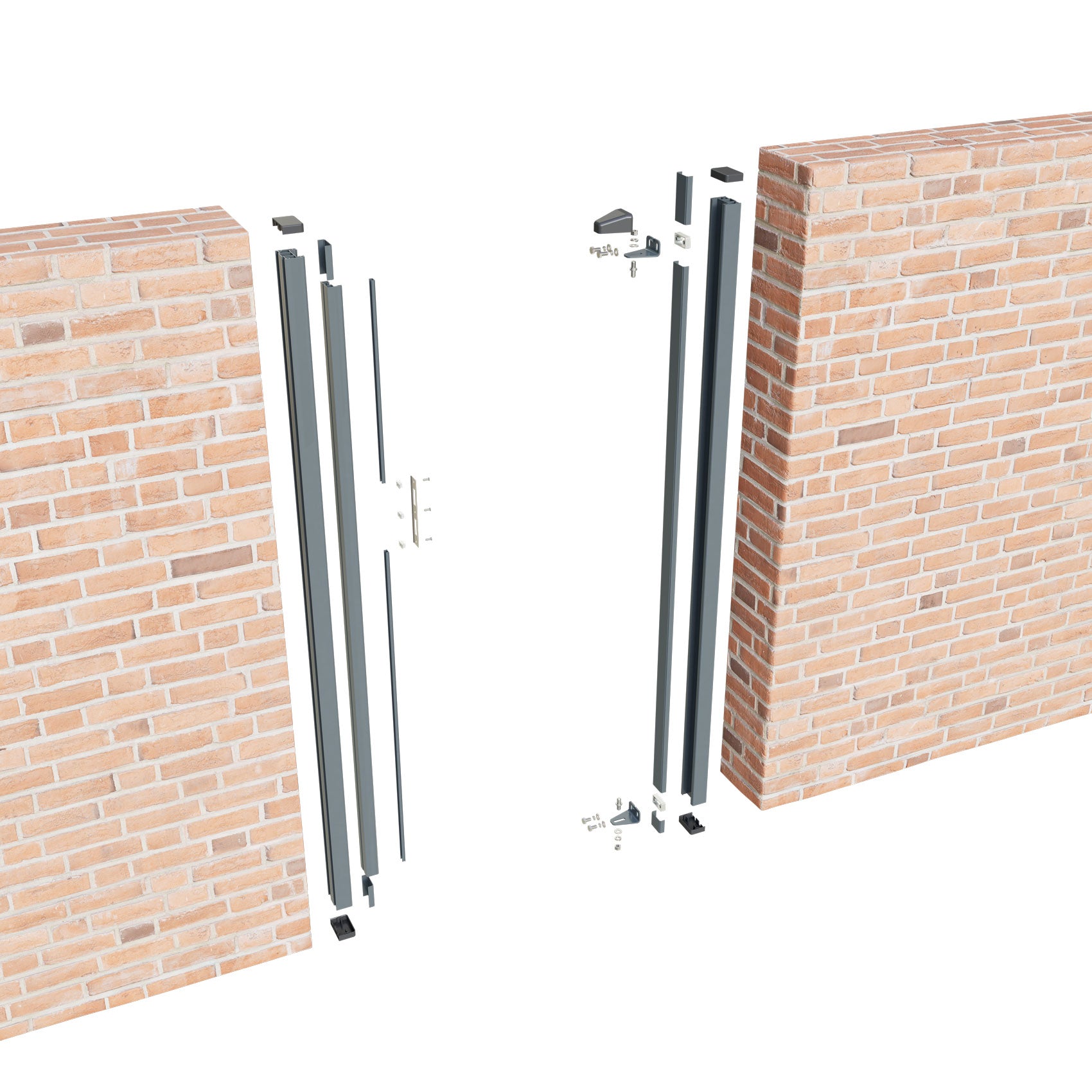

Like the hinge post, this receiver post is surface-mounted to a wall or structure, so you don’t need to dig holes or concrete in a freestanding post. It’s ideal for finishing the closing side of the gate opening neatly and professionally.

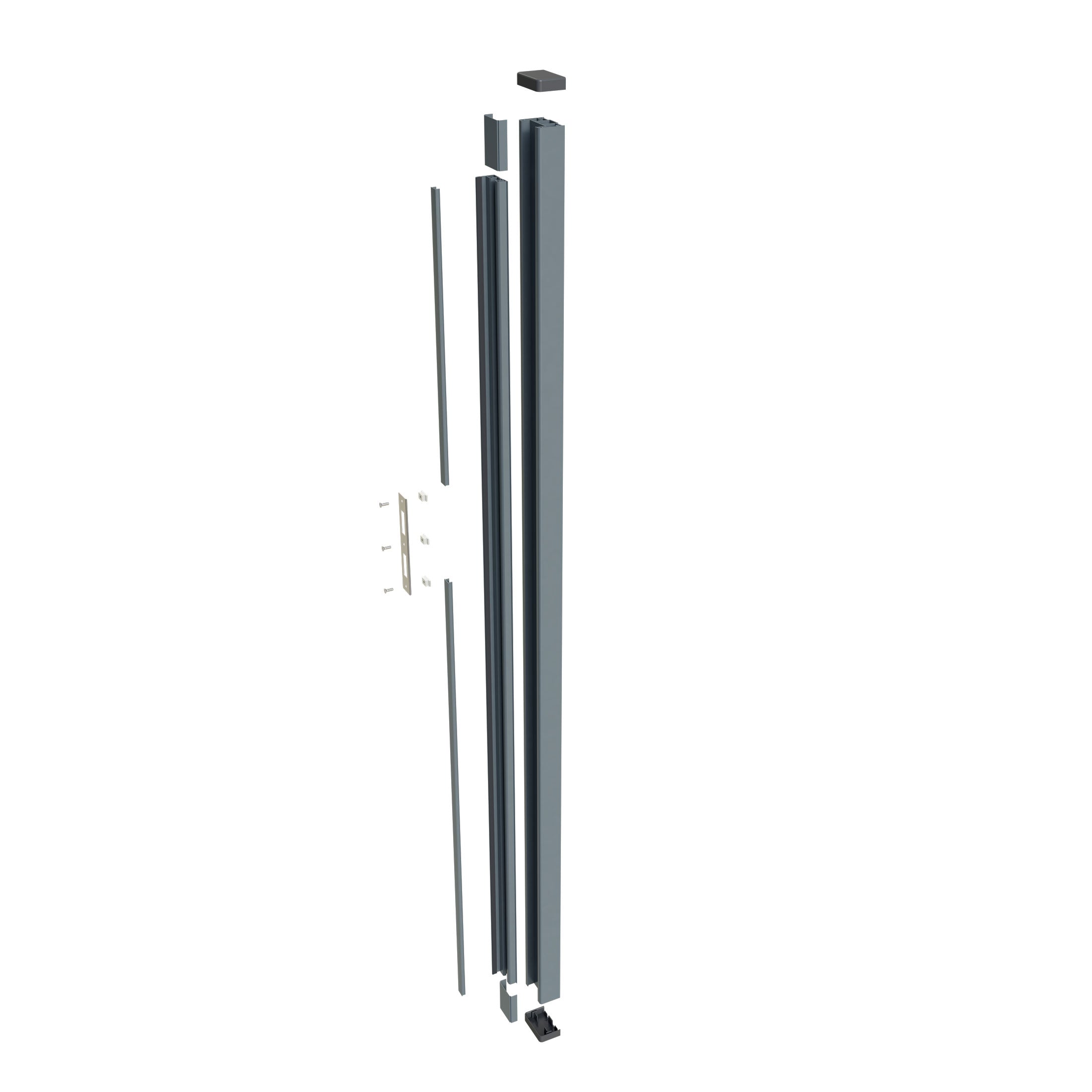

Posts are supplied individually (one post per pack) and come complete with a post cap and all required fittings and fixings. Designed for gates up to 2000mm in height (post height 2100mm).

Key features

• Single wall-mounted receiver gate post for garden and pedestrian gates
• Provides a solid closing point for the gate latch or lock keep
• Made from strong, lightweight 3.5mm aluminium
• Supplied with post cap and fittings & fixings
• Modern, slim profile to match our gate designs
• Two colours available: Jet Black and Anthracite Grey – custom RAL colours available on request
• Naturally low maintenance – simply wash down with soapy water and rinse
• 5-year warranty for long-term peace of mind

Sizes available (width options)

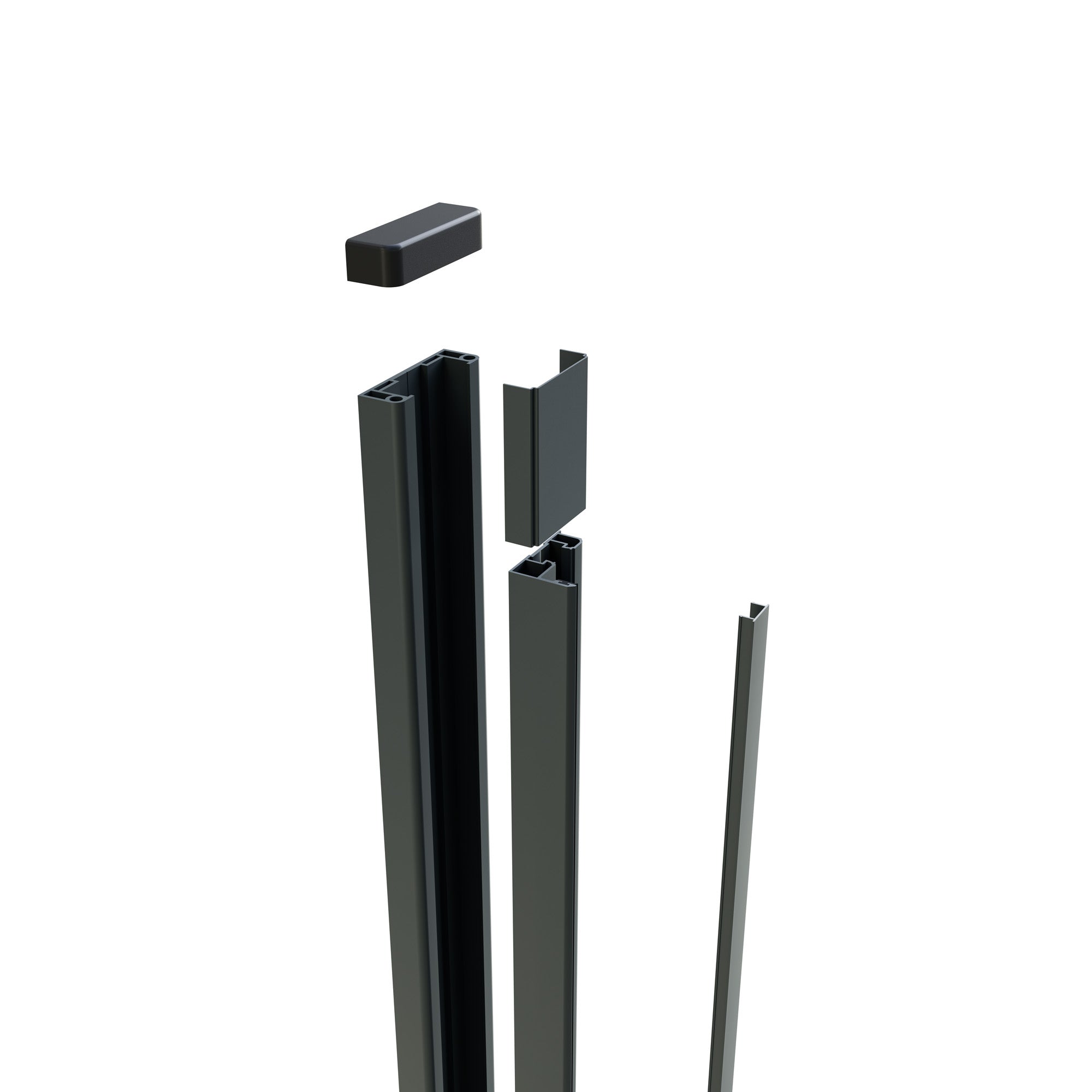

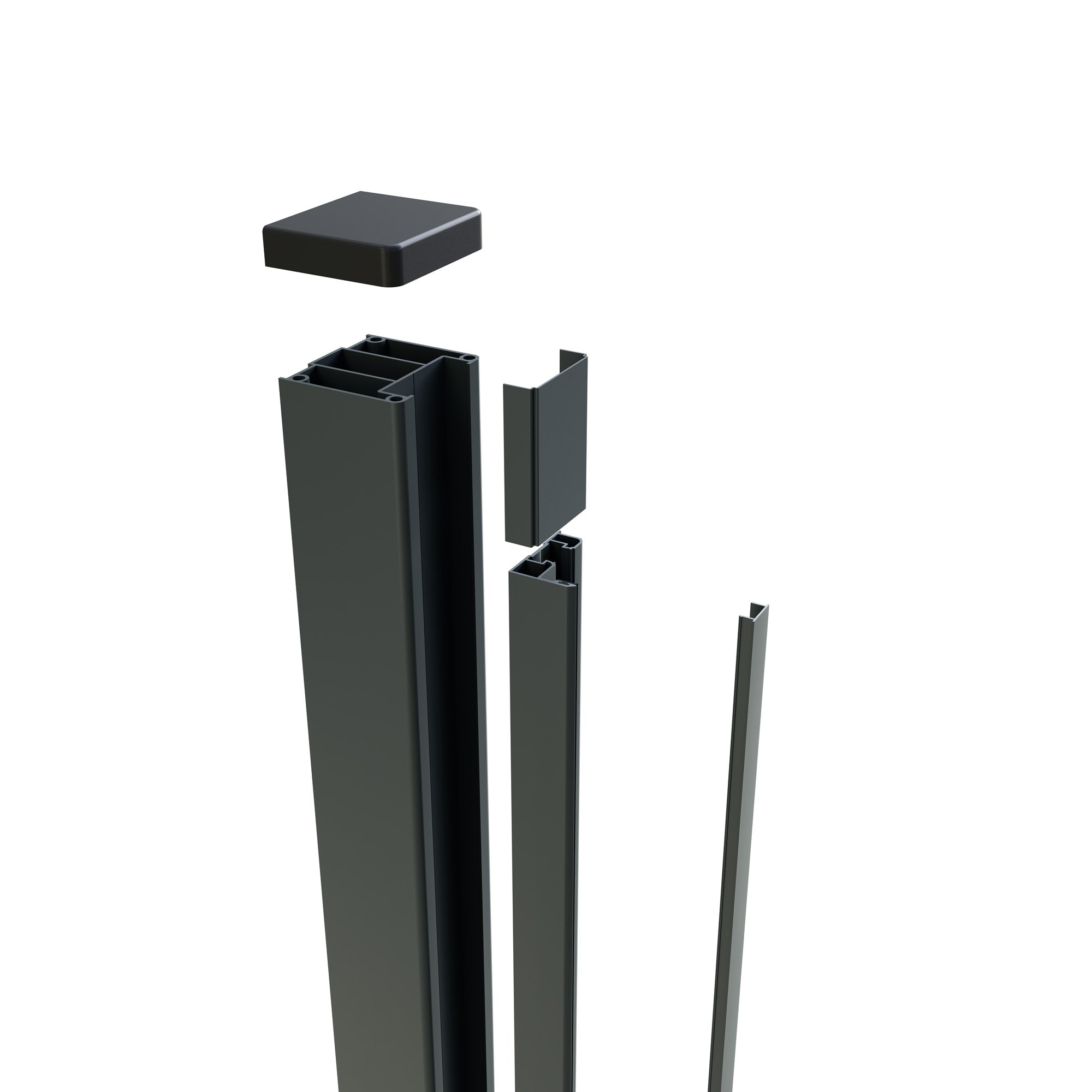

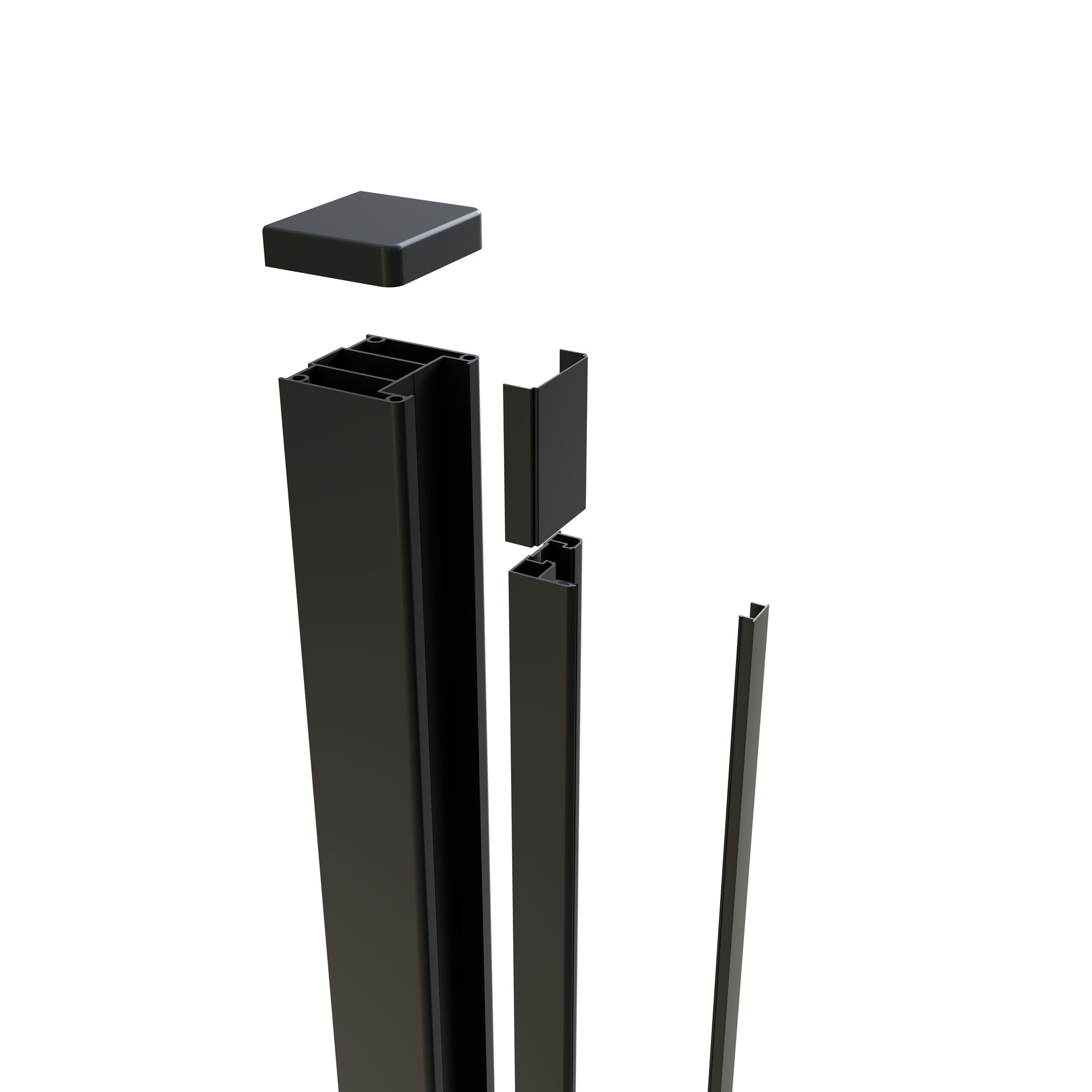

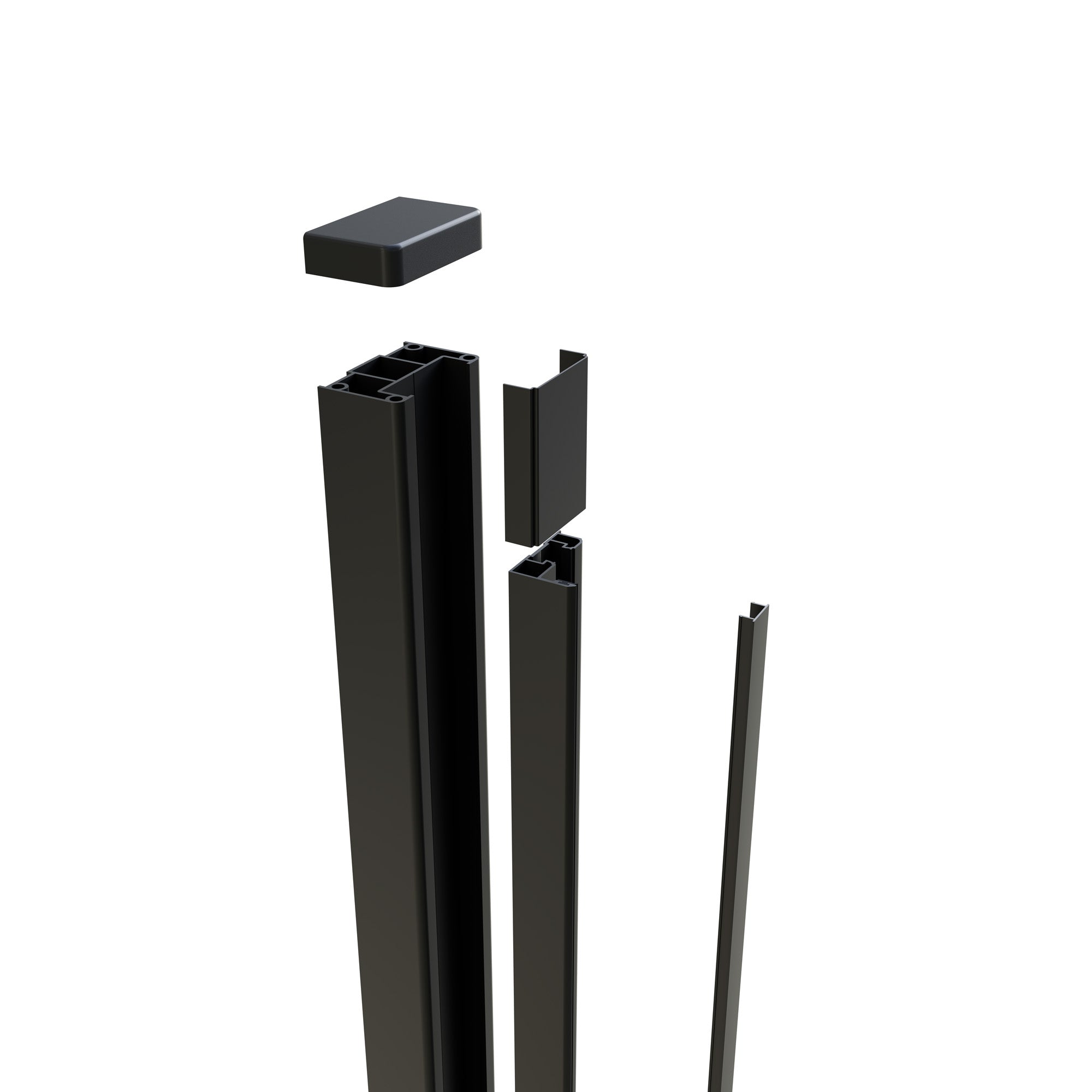

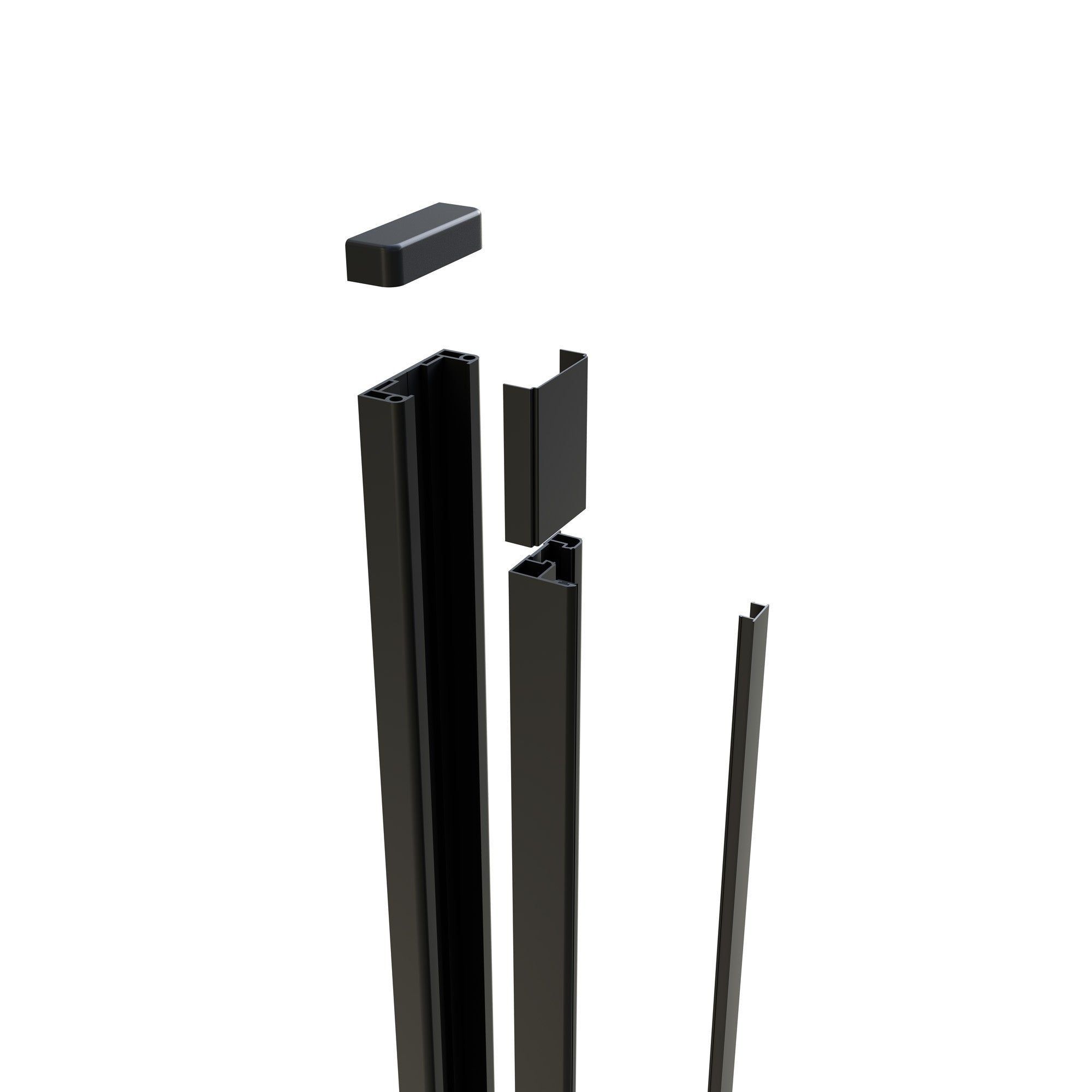

All posts are 2100mm high with an 80mm depth, and three width options:

• W25mm
• W50mm
• W75mm

These width options help you fine-tune the opening width so your gate closes cleanly against the post. This is especially useful where the brick-to-brick opening isn’t a standard size.

How to choose the right post size (example)

• If you install one of our Garden & Pedestrian Gates without any posts, allow 30 mm in total for hinges and clearance.
• If you are using a Receiver Gate Post (even if you also add a Hinge Gate Post): allow 20mm for clearance.
• Allow 30mm for hinges and clearance when fitting the gate without a Receiver Gate Post. If you select a Receiver Gate Post (with or without a Hinge Gate Post), the required clearance is 20mm.

Example A – Hinge Gate Post only
Opening width = 855mm

• 800mm (gate)
• 30mm (clearance)
• 25mm (Hinge Gate Post)

= 855mm opening width

Example B – Hinge Gate Post + Receiver Gate Post
Opening width = 870mm

• 800mm (gate)
• 20mm (clearance)
• 25mm (Hinge Gate Post)
• 25mm (Receiver Gate Post)

= 870mm opening width

Example C – Without posts
Opening width = 830mm

• 800mm (gate)
• 30mm (clearance)

= 830mm opening width

Example D – Receiver Gate Post only
Opening width = 845mm

• 800mm (gate)
• 20mm (clearance)
• 45 mm (Receiver Gate Post)

= 845mm opening width

Choosing the right combination of gate width, clearance and post widths helps you achieve a neat, secure installation that looks professional and works smoothly.
